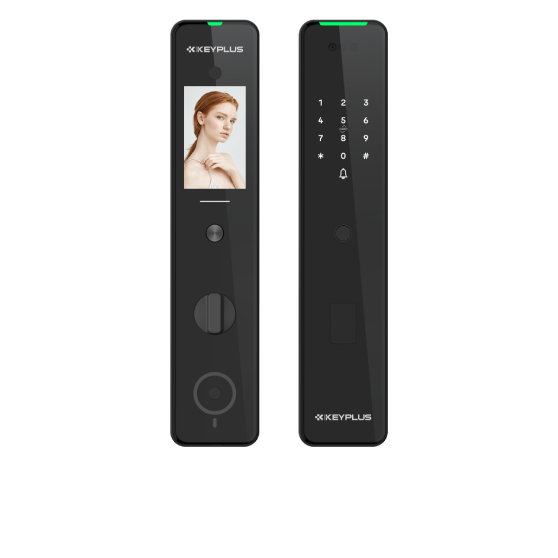

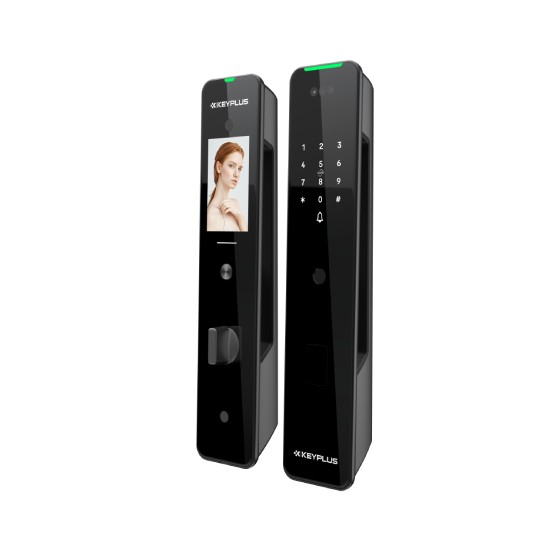

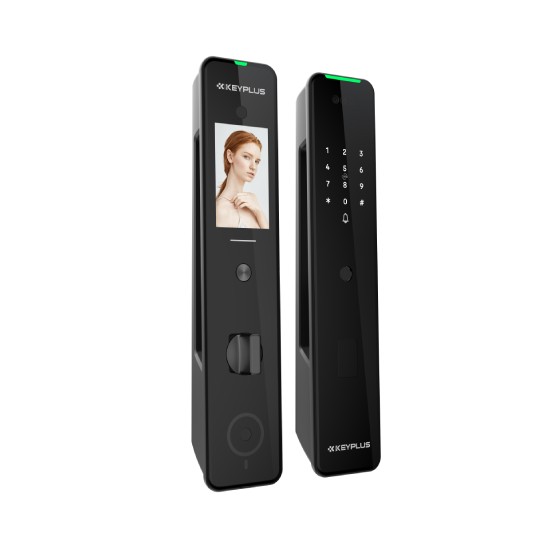

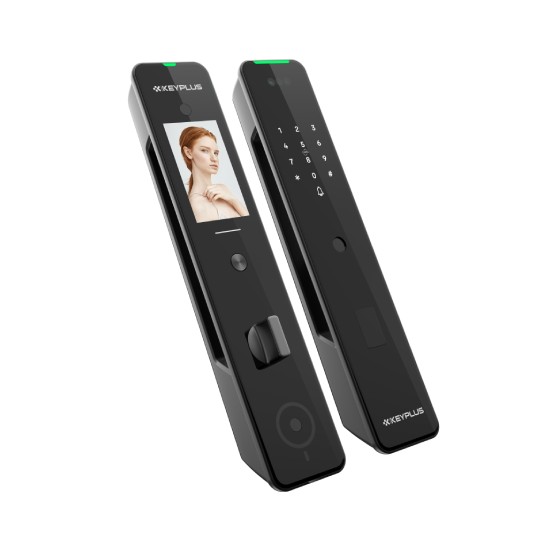

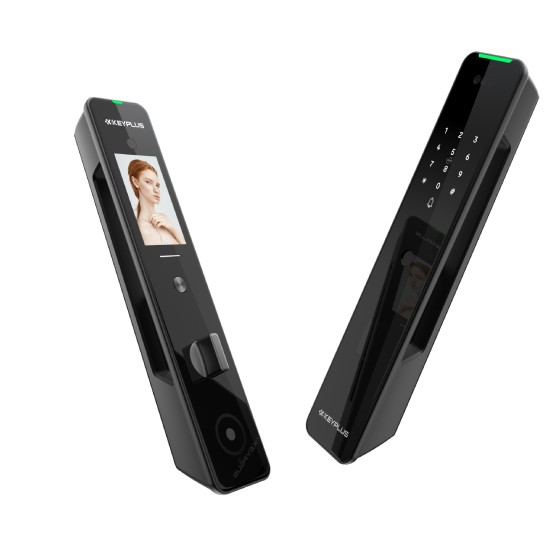

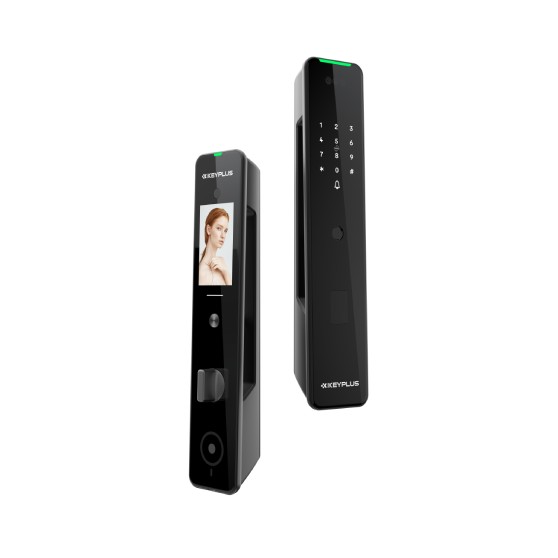

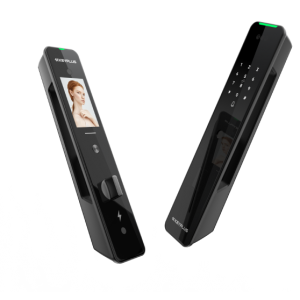

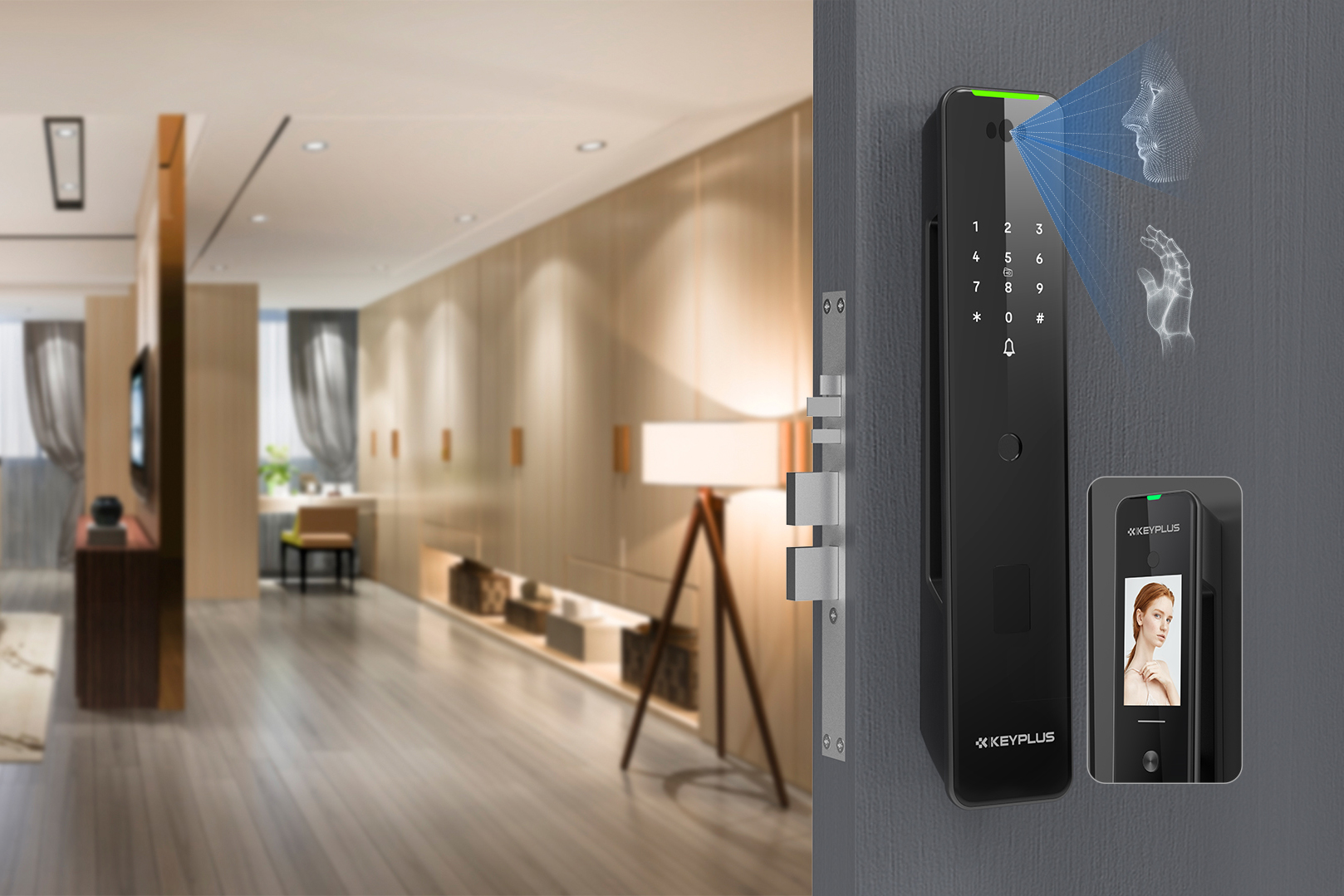

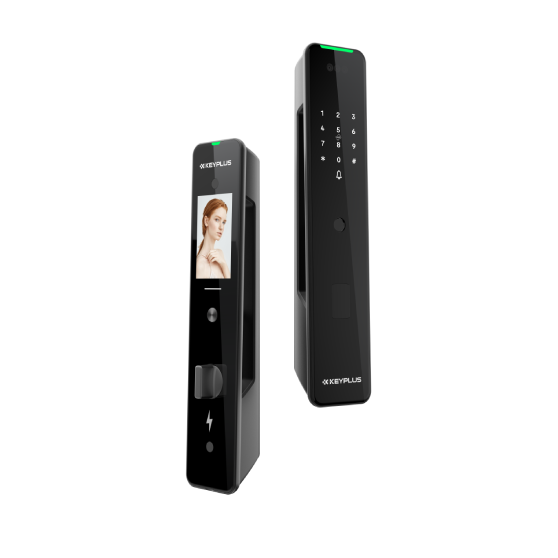

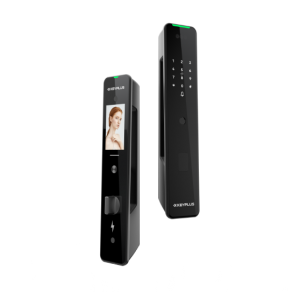

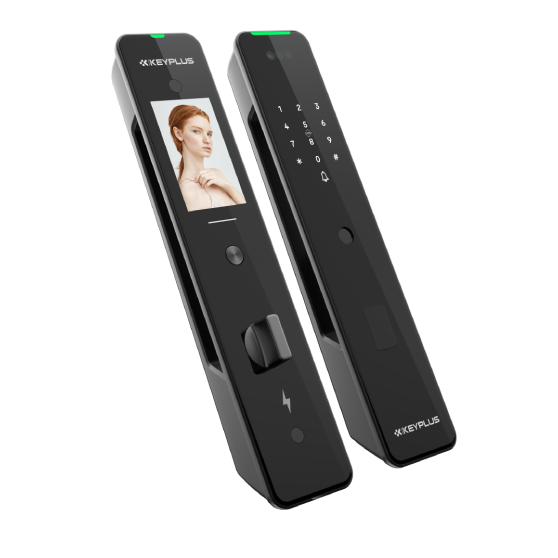

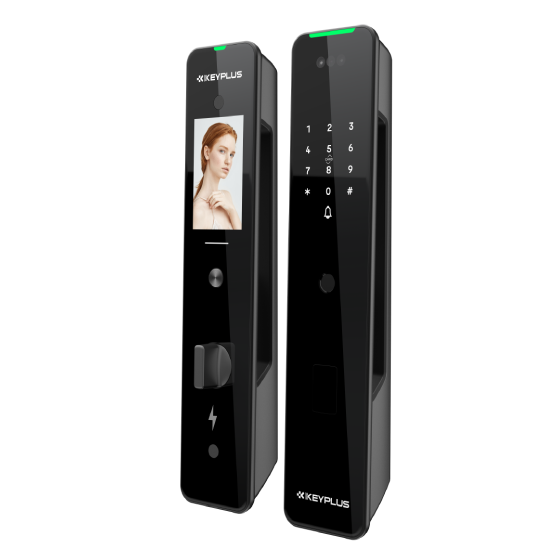

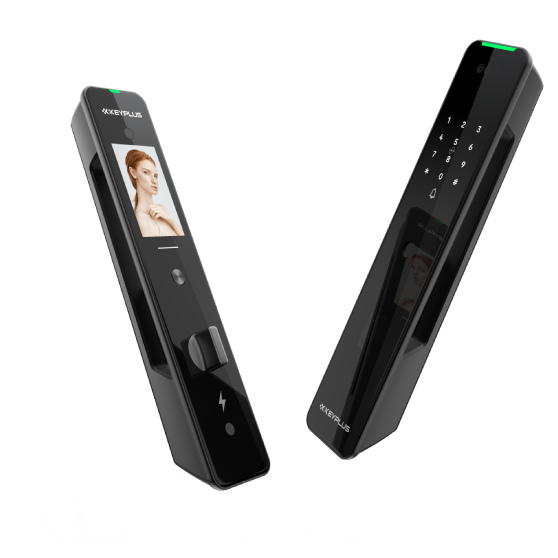

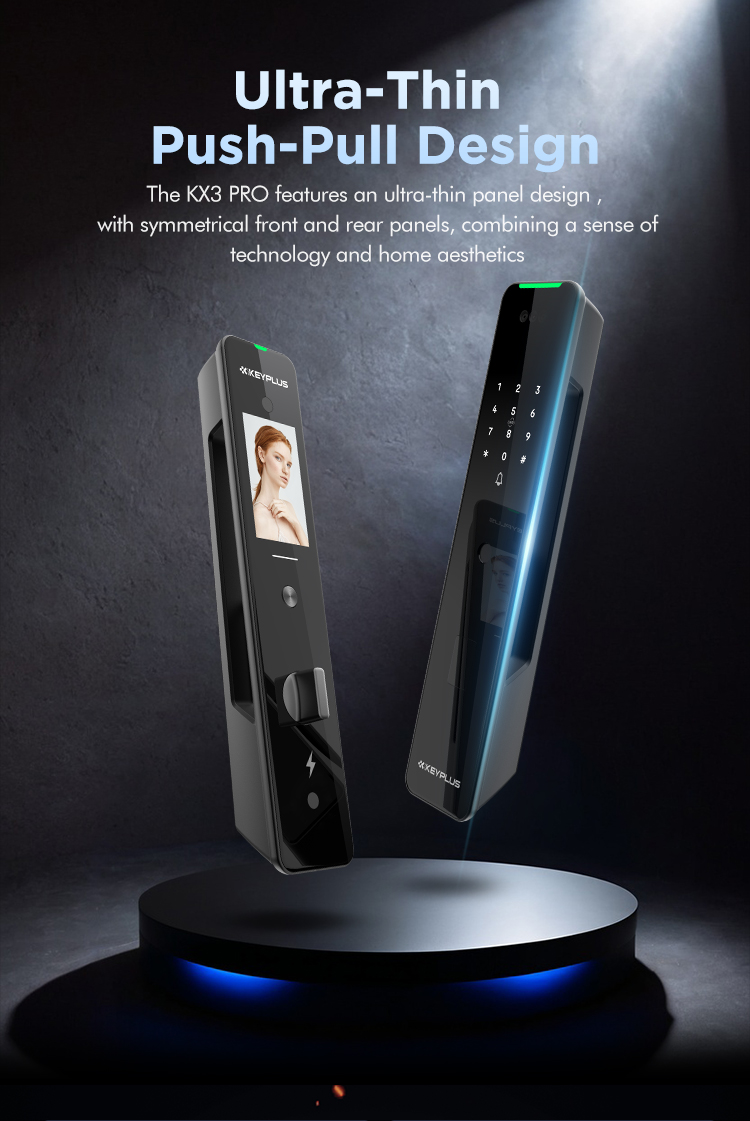

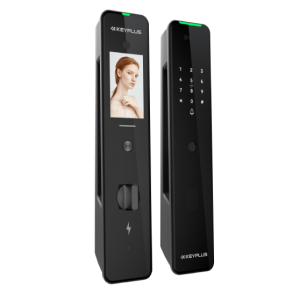

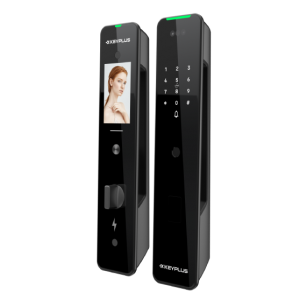

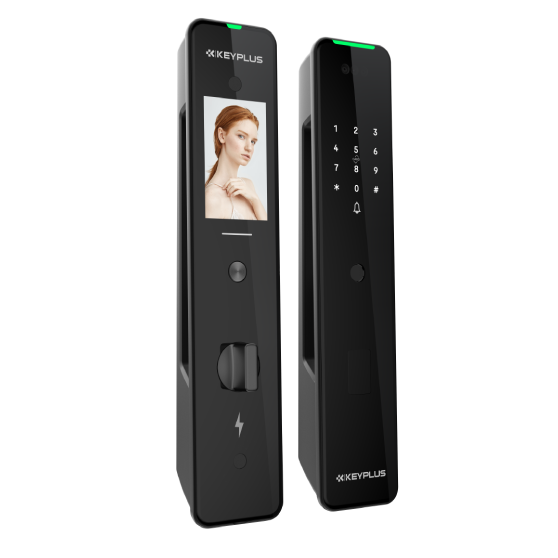

● KX flagship ultra-thin panel (12mm) integrated panel design;
● Cat-eye video intercom, inner door with visual screen
● Equipped with FPC fingerprint, international version 3D face, palm vein high-security biometric recognition technology

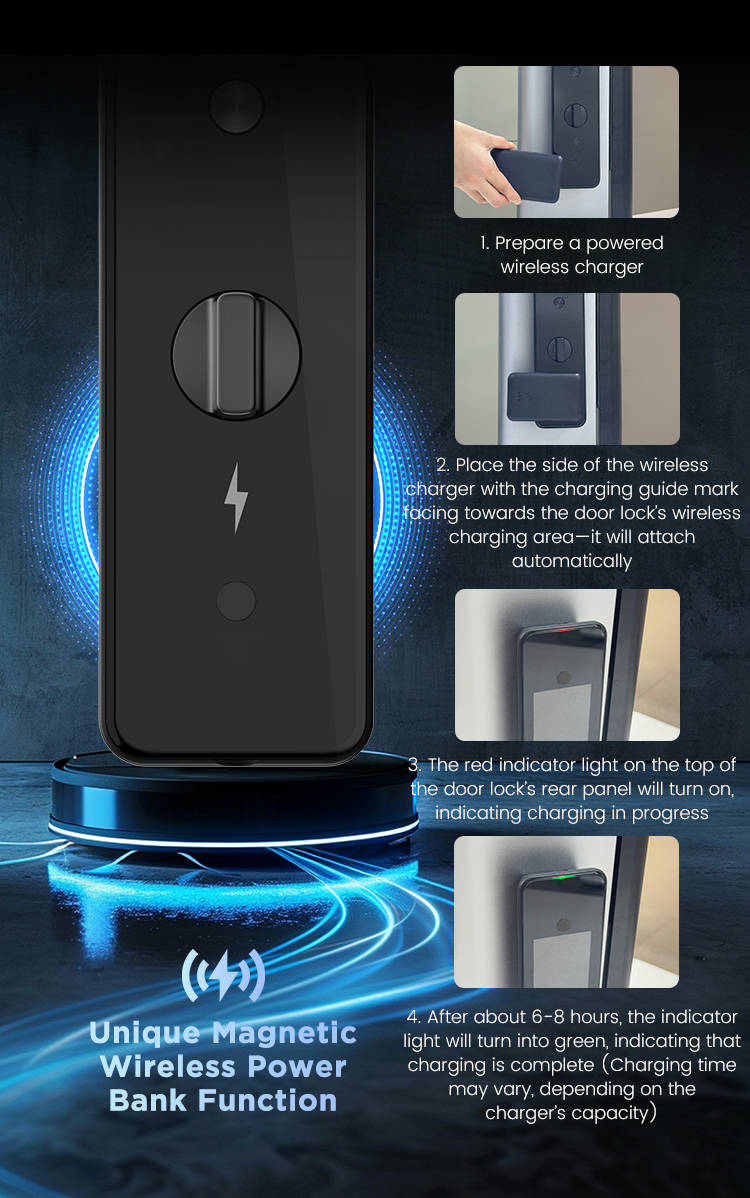

● Patented built-in large-capacity lithium battery design, charging circuit design, low power consumption, high security, long life

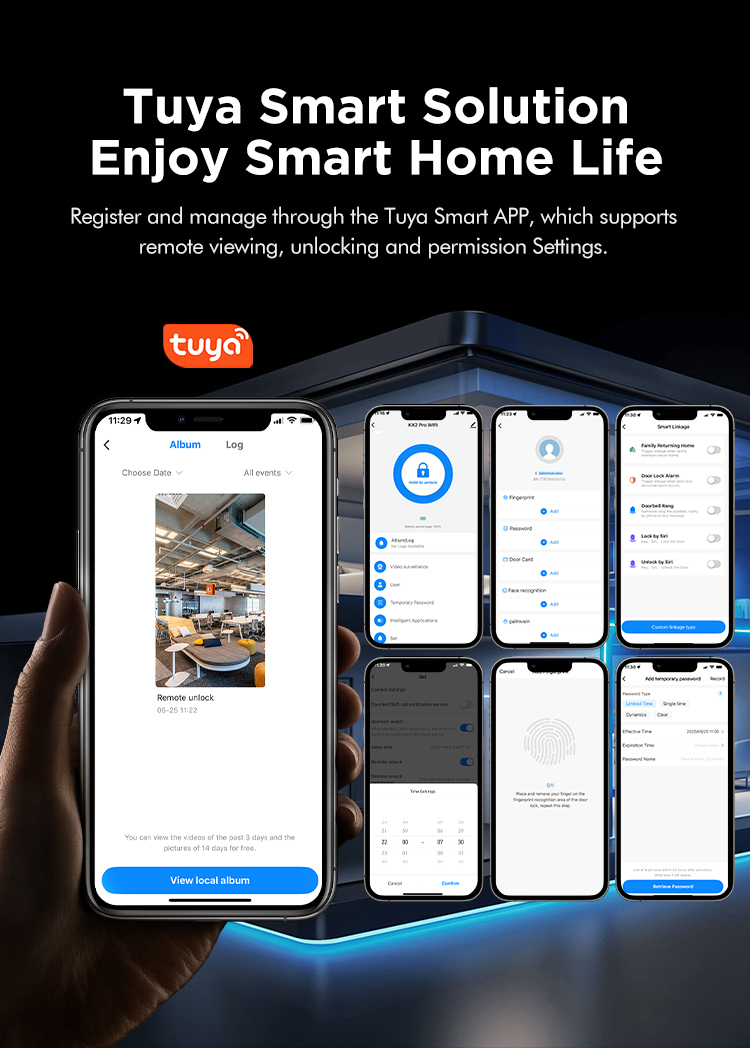

● Tuya Smart APP full registration
● Eight languages choose

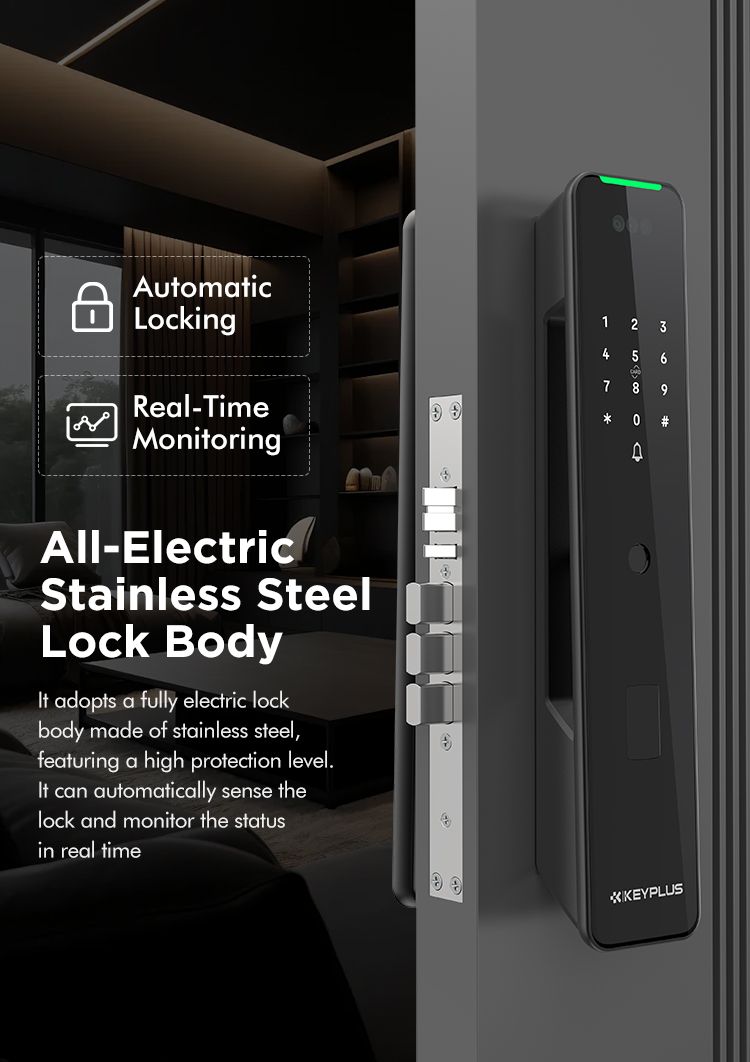

● Stainless steel high-protection grade fully electric lock body, automatic induction locking and real-time monitoring of door lock status
● One-button opening inside the door and child lock function can be set
● Can be linked with iron door locks or building intercom equipment
● Google Home, Alexa smart speaker linkage
| Working Voltage | 7.4V Batteries |
| Alarming Voltage | ≤7V |
| Static Current | ≤80uA |
| Working Temperature | -25℃~60℃ |
| Relative Humidity | 20%~90% |
| Dynamic Current | <300mA |
| Face /Palm Vein Capacity | 100 PCS |
| False Recognition Rate | <0.0001% |
| Password Length | 6 Digits |
| Card Capacity | 100 PCS |
| Fingerprint Capacity | 100 PCS |
| Password Capacity | 30 PCS |
| Recognition Range | 0.4-1Meter(Best about 0.6 M) |
| Standard Door Thickness | 35-70mm(Other Dimensions Customizable) |
| Material | Space Aluminium |
| Battery Life | ≈500 Charge-discharge cycles |
● 1* Smart Door Lock
● 3* Mifare Crystal Card
● 2* Mechanical Keys
● 1* Carton Box
● Technical drawing
