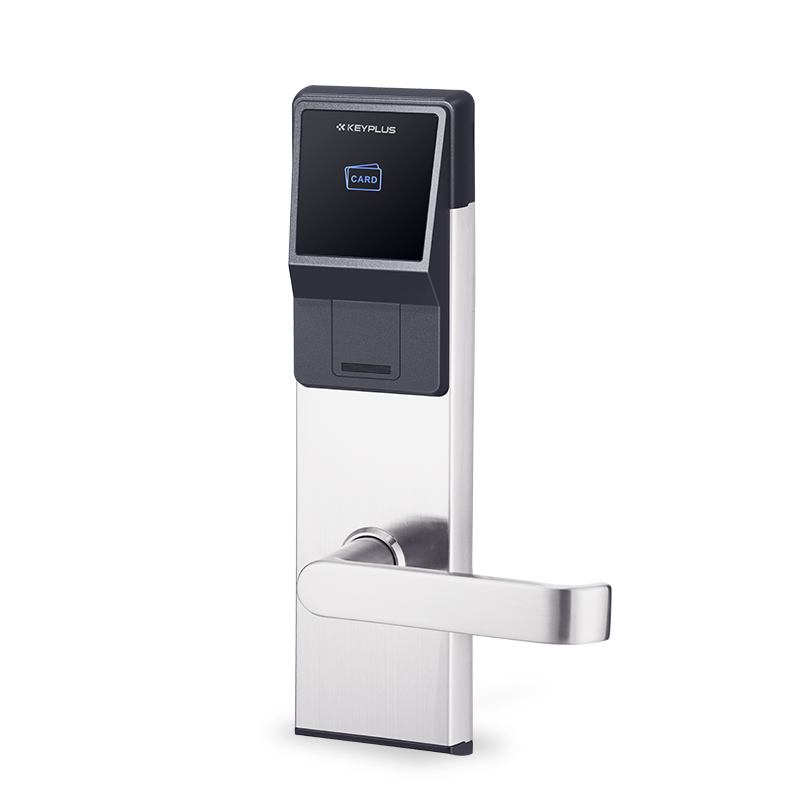

RF-230/M1-130 Digital Lock/ Smart Lock / Hotel Lock Model Series

Short Description:

We are specializing digital Lock for over 25 years, Easily use and fashionable design is our key point. Our state-of-the-art equipment allows us to offer a variety of hotel door locks services include: digital door lock system. We have active cooperation with well-known international enterprises and top 100 real estate companies and eager to be your long-term partner in China.

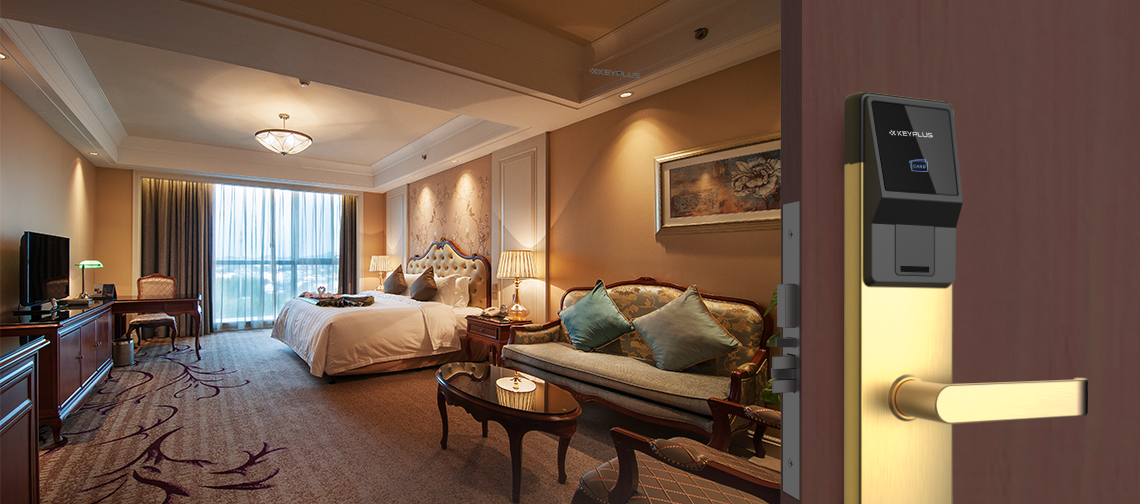

Product scene


Fashionable appearance and classic design, using stainless steel material with anti-corrosion and anti-heat advantage for front and back plate including handle. Support high-frequency (Mifare) card and low-frequency (RF) card reading function. The most advanced fire-proof and anti-theft lock body, it can be applied from inne to big five-star hotels.

Product Details


● Opening with Smart Card

● Kaba Key Cylinder design

● Alarming Function when the door is not close well or low power, wrong operation

● Emergency Function

● No need Website Connection To Open the Door

● Three Latch Lock Body Safety design

● USB Power for Emergency Situation

● Managment System

● Opening Records for Checking


● Stainless steel lock with durable and quality performace

● Standard mortise lock

● Mechanical Master Key System (option)

● Declaration of conformity CE

● FCC/IC conformity

ID Technologies

MIFARE® (DESFire EV1, Plus, Ultralight C, Classic - ISO/IEC 14443).

RF 5557

Technical Specification

Registered Cards Number No limitation
Reading Time <1s
Reading Range <3cm
M1 Sensor Frequency 13. 56MHZ
T5557 Sensor Frequency 125KHZ
Static Current <15μA
Dynamic Current <120mA
Lower Voltage Warning <4. 8V (250 times at least)
Working Temperature -10℃~50℃
Working Humidity 20%~80%
Working Voltage 4PCS LR6 Alkaline Batteries
Material 304 Stainless Steel
Door Thickness Request 40mm~55mm (available for others)



KEYPLUS is specialized in developing the hotel electronic lock and accumulating a professional hotel lock management solution, the solution is including hotel electronic lock system,hotel access control system, IC Cards ,hotel power-saving system, hotel security system, Hotel logistic dept management system,hotel matching hardware.
