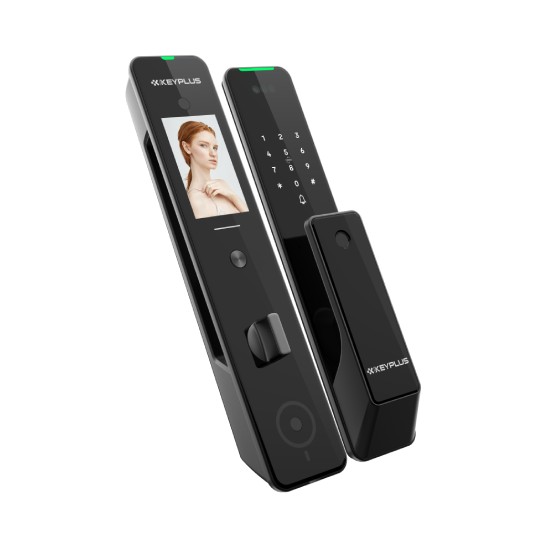

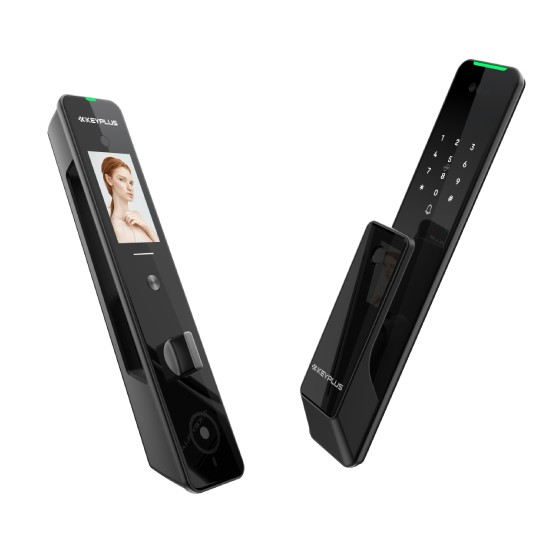

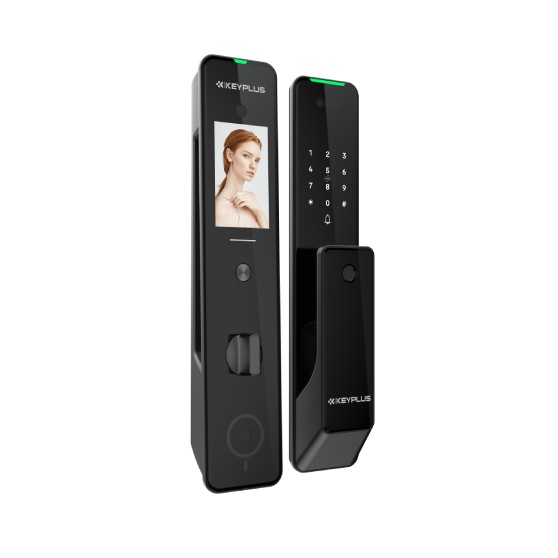

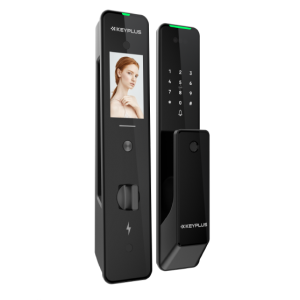

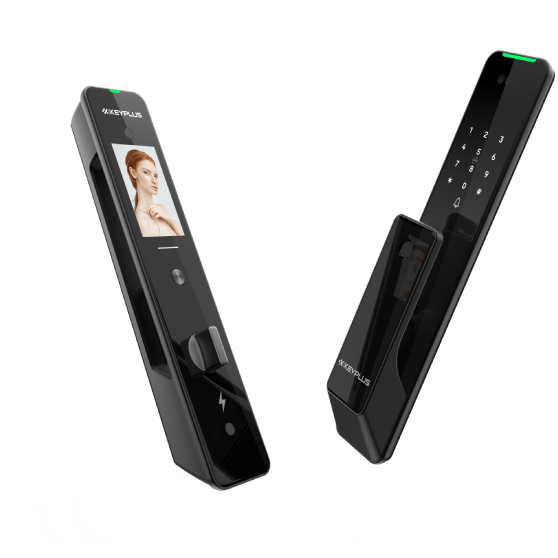

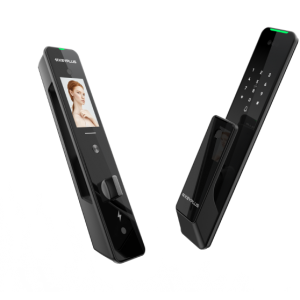

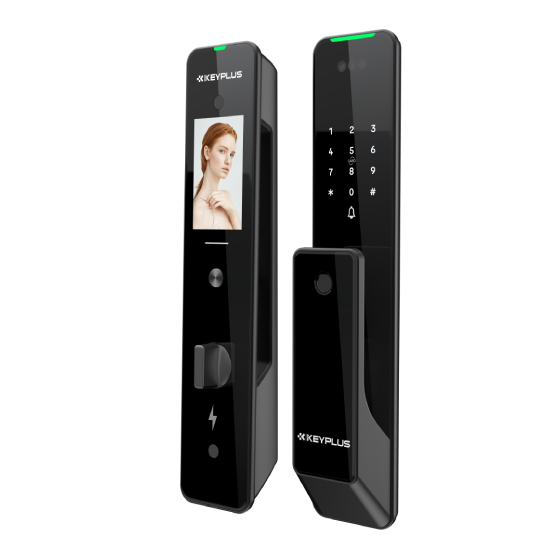

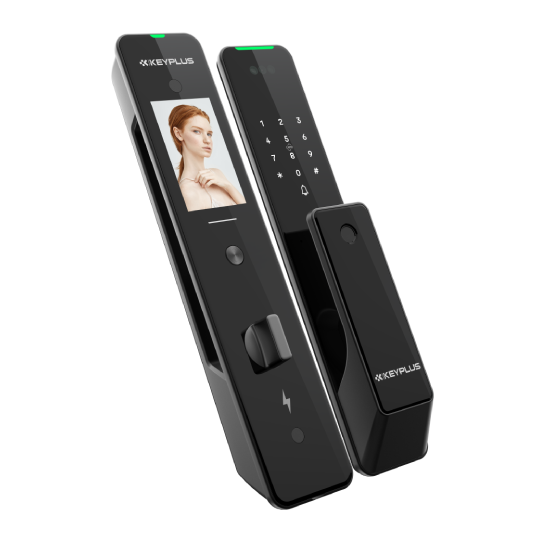

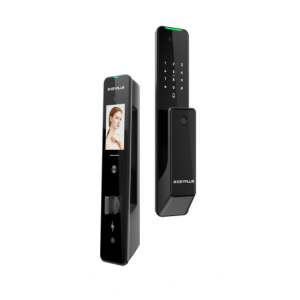

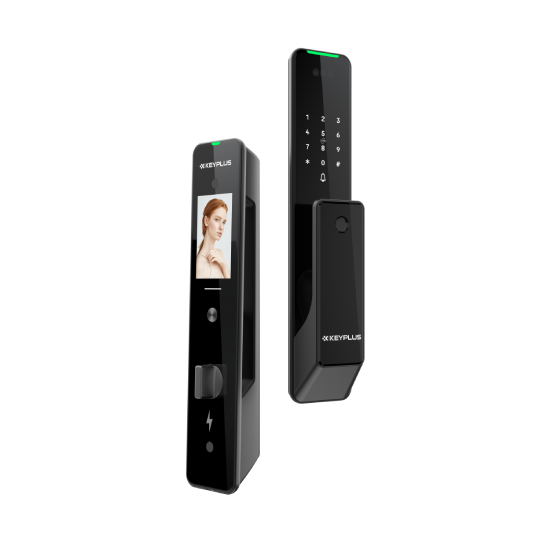

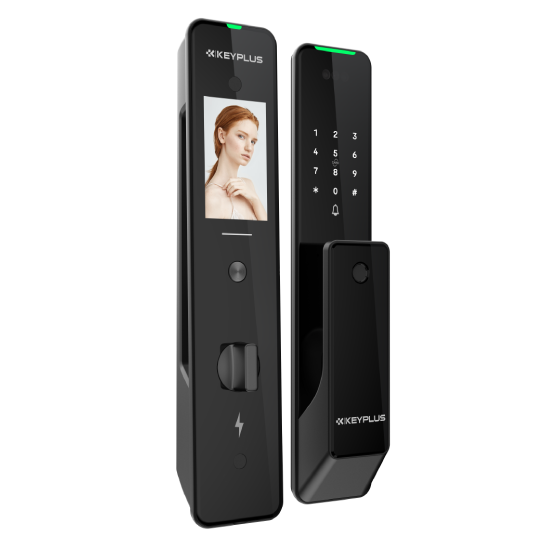

● KX flagship ultra-thin panel (11.5mm) integrated panel design (must be expressed)
● Cat's eye visual intercom, the inner panel of the door lock has a visual screen (must be expressed)
● The inner panel of the door lock supports wireless charging function (must be expressed)
● With FPC fingerprint, international version 3D face, palm vein high-security biometric recognition technology (must be expressed)
● Patented built-in large-capacity lithium battery design, charging circuit design, low power consumption, high security, long life (must be expressed)
● Stainless steel high-protection full-electric lock body, automatic induction locking and real-time monitoring of door lock status
● One-button opening inside the door and child lock function can be set
● Tuya Smart APP full registration
● Door lock voice in eight languages choose
● Can be linked with iron door locks or building intercom equipment
● Google Home, Alexa smart speaker linkage
| Working Voltage | 7.4V Batteries |
| Alarming Voltage | ≤7V |
| Static Current | ≤80uA |
| Working Temperature | -25℃~60℃ |
| Relative Humidity | 20%~90% |
| Dynamic Current | <300mA |
| Face /Palm Vein Capacity | 100 PCS |
| False Recognition Rate | <0.0001% |
| Password Length | 6 Digits |
| Card Capacity | 100 PCS |
| Fingerprint Capacity | 100 PCS |
| Password Capacity | 30 PCS |
| Recognition Range | 0.4-1Meter(Best about 0.6 M) |
| Standard Door Thickness | 35-70mm(Other Dimensions Customizable) |
| Material | Space Aluminium |
| Battery Life | ≈500 Charge-discharge cycles |
● 1* Smart Door Lock
● 3* Mifare Crystal Card
● 2* Mechanical Keys
● 1* Carton Box
● Technical drawing
